Hudson Flanges, located in Midland, UK, is a trusted manufacturer and supplier of high-quality flanges for various industrial applications. We specialize in AISI 4140 Flanges, known for their exceptional strength, toughness, and wear resistance. AISI 4140 flanges are ideal for use in demanding industries such as automotive, aerospace, and oil & gas, where high performance and durability are essential. With a focus on precision and reliability, Hudson Flanges ensures that each product meets the highest standards of quality and performance.
AISI 4140 Flanges are made from a low-alloy steel containing approximately 0.40% carbon, 0.80-1.10% chromium, and 0.15-0.25% molybdenum. This composition offers excellent toughness, high tensile strength, and good fatigue resistance. Mechanically, AISI 4140 flanges have a tensile strength of 655 MPa and yield strength of 415 MPa. The advantages of AISI 4140 flanges include superior wear resistance, high strength, and good hardenability, making them ideal for high-stress applications. These flanges are widely used in automotive, aerospace, and oil & gas industries for reliable, long-lasting connections in harsh environments.
| Size Chart | 1/2″ to 48″ |
|---|---|
| Pressure Rating | Class 150, 600, 300, 1500, 900, 2500 LBS |
| Pressure Calculation in DIN | 6/ 16/ 10/ 40/ 25Bar / PN6 PN16 PN10 PN40 PN25 PN64 |
| JIS | 5K, 16 K, 10 K, 30 K, 20 K, 63 K, 40 K |
| UNI | 6/ 16/ 10/ 40/ 25Bar |
| EN | 6/ 16/ 10/ 40/ 25Bar |
| Flange Face Type | Lap-Joint Face, Large Male-Female, Raised Face, Flat Face, Small Tongue, Small Male-Female, Ring Type Joint, Large Tongue & Groove Flanges manufacturer and Supplier |
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
| Element | Content |
|---|---|
| Chromium | 0.80 Tp 1.10 |
| Manganese | 0.75 Tp 1.0 |
| Silicon | 0.15 To 0.30 |
| Carbon | 0.380 To 0.430 |
| Molybdenum | 0.15 To 0.25 |
| Sulfur | 0.040 |
| Phosphorous | 0.035 |
| Iron | Balance |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 655 MPa | 95000 psi |
| Bulk modulus | 140 GPa | 20300 ksi |
| Yield strength | 415 MPa | 60200 psi |
| Shear modulus | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Elongation at break (in 50 mm) | 25.70% | 25.70% |
| Hardness, Knoop | 219 | 219 |
| Hardness, Rockwell B | 92 | 92 |
| Hardness, Brinell | 197 | 197 |
| Hardness, Rockwell C | 13 | 13 |
| Machinability | 65 | 65 |
| Hardness, Vickers | 207 | 207 |

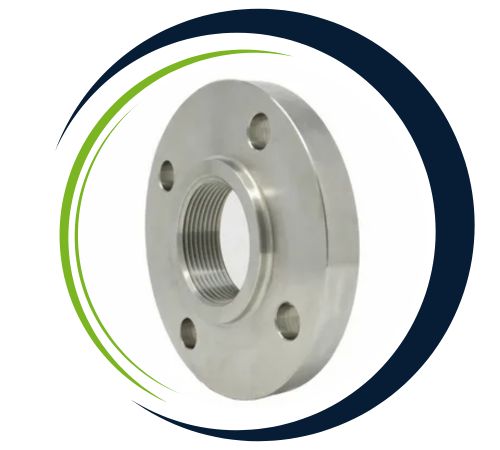

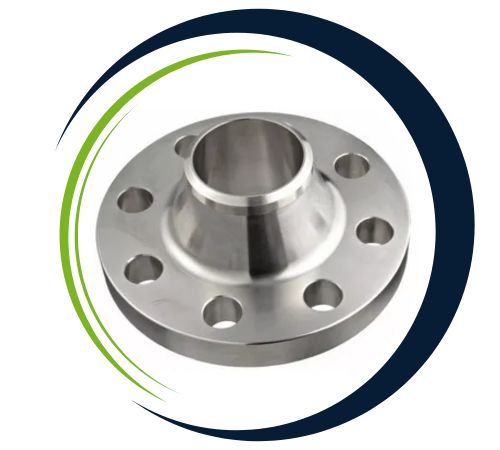

Hudson Flanges, a leading supplier in Midland, UK, offers an extensive selection of AISI 4140 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
AISI 4140 Flanges are widely used in industries that require high-strength, durable components for heavy-duty applications. Common uses include automotive, aerospace, oil & gas, and power generation sectors, where they are employed in high-pressure systems, piping, and machinery. These flanges are essential for connecting pipes, valves, and other equipment in critical systems such as hydraulic systems, pressure vessels, and fuel lines. Their exceptional strength, wear resistance, and ability to withstand harsh conditions make AISI 4140 flanges ideal for ensuring reliable and long-lasting connections in demanding environments.
Yes, we offer custom sizes for AISI 4140 Flanges to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
| STANDARD | UNS | WERKSTOFF NR. |
| AISI 4140 | G41400 | 1.7225 |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
