Hudson Flanges is a premier producer and distributor of top-quality flanges headquartered in Midland, UK. We specialize in Big diameter flanges and serve a wide variety of industries such as oil and gas petrochemicals and power generation. We are committed to precision engineering and high-quality craftsmanship and our products conform to the highest global standards. Supported by decades of experience and world-class facilities Hudson Flanges provides dependable, long-lasting solutions specifically designed to meet your individual needs. Count on us for flange manufacturing excellence and superior customer service.
Big diameter flanges are generally fabricated from materials such as carbon steel, stainless steel, or alloy steel. These materials are selected due to their strength, durability and corrosion resistance. The mechanical characteristics comprise high tensile strength, toughness and resistance to deformation when subjected to pressure. Physically, large diameter flanges have good heat resistance, corrosion resistance and dimensional stability. They are made to handle high-pressure uses providing safe and leak-tight connections within pipelines or machinery. The content and characteristics are determined by individual application needs to provide reliability and performance in industrial applications.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

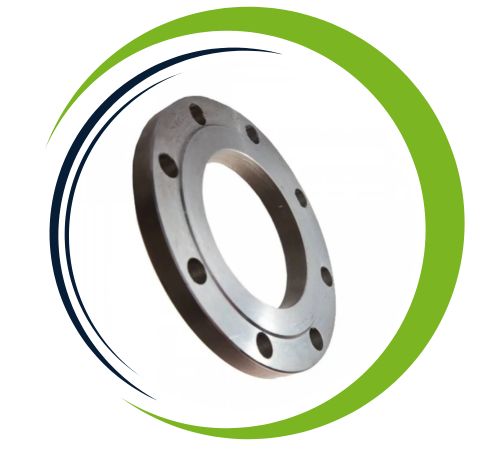

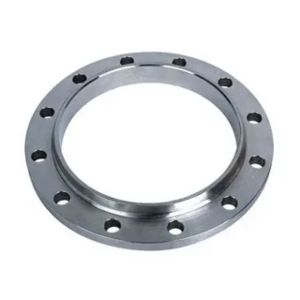

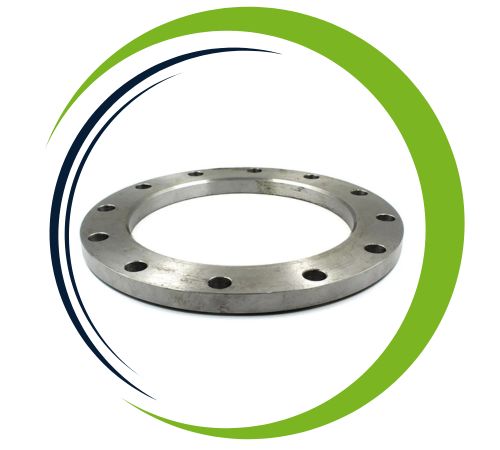

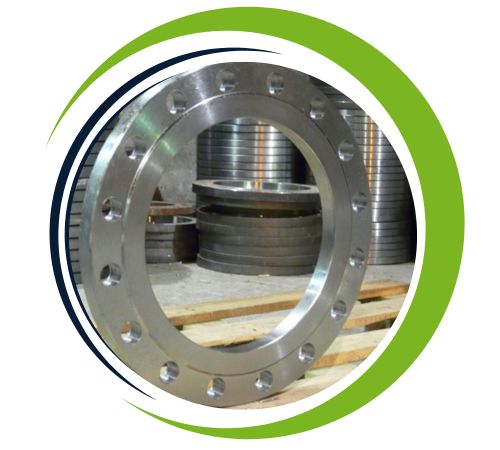

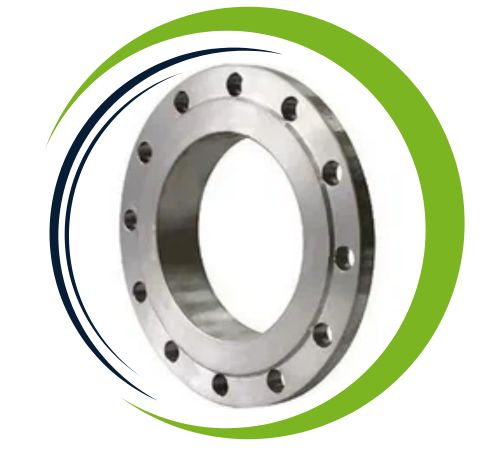

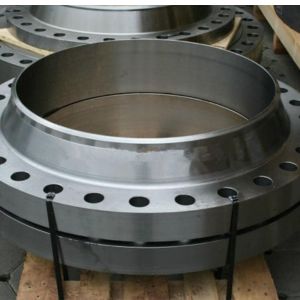

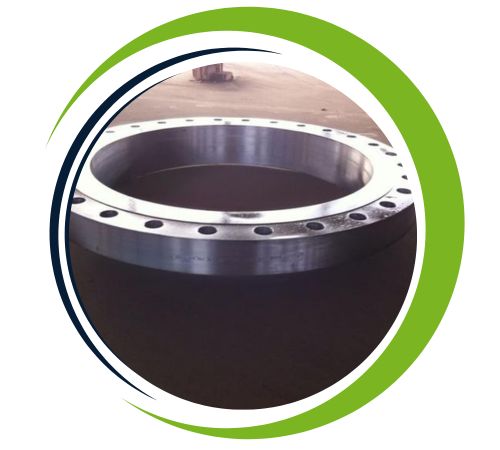

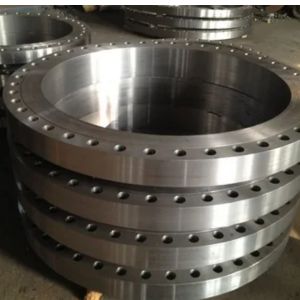

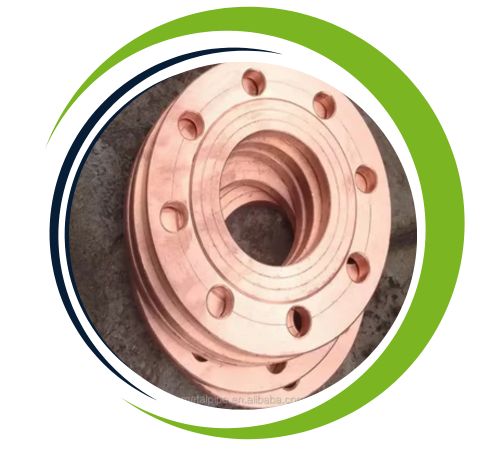

| Material | Inconel Large Diameter Flange, Hastelloy Large Diameter Flange, AISI 4130 Large Diameter Flange, Incoloy Big Diameter Flange, Nickel Alloy Large Diameter Flange, Titanium Big Diameter Flange, Super Duplex Big Diameter Flange, Brass Large Diameter Flange, Alloy 20 Large Diameter Flange, Duplex Steel Large Diameter Flange, Monel Large Diameter Flange, SMO 254 Big Diameter Flange, Stainless Steel Big Diameter Flange, Copper Nickel Large Diameter Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Hudson Flanges, a leading supplier in Midland, UK, offers an extensive selection of Big Diameter Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Big diameter flanges are critical parts in applications where large-diameter pipes, valves or equipment need to be connected. They are widely utilized in oil and gas, chemical processing, power generation and water treatment applications. Big diameter flanges offer a leak-proof secure connection enabling safe fluid and gas transportation under high pressure or temperature conditions. They also enable simple assembly, disassembly and maintenance of pipelines and systems. In addition, their solid construction makes them durable and dependable, even in challenging conditions.
| NPS | Pipe Diameter | Flange Inside Daimeter | Number of holes | Flange Daimeter | Thickness of Flange | Daimeter of Bolt Circle | Daimeter of Bolt Holes | Approx.Weight in kg | |
| DN | ISO | DIN | D5 | BN | D | b | K | d2 | KG/PCS |
| 10 | – | 14 | 14.5 | 4 | 90 | 16 | 60 | 14 | 0.7 |
| 17.2 | – | 17.7 | 4 | 90 | 16 | 60 | 14 | 0.69 | |
| 15 | – | 20 | 21 | 4 | 95 | 16 | 65 | 14 | 0.77 |
| 21.3 | – | 22 | 4 | 95 | 16 | 65 | 14 | 0.77 | |
| 20 | – | 25 | 26 | 4 | 105 | 18 | 75 | 14 | 1.06 |
| 26.9 | – | 27.6 | 4 | 105 | 18 | 75 | 14 | 1.05 | |
| 25 | – | 30 | 31 | 4 | 115 | 18 | 85 | 14 | 1.27 |
| 33.7 | – | 34.4 | 4 | 115 | 18 | 85 | 14 | 1.25 | |
| 32 | – | 38 | 39 | 4 | 140 | 18 | 100 | 18 | 1.86 |
| 42.4 | – | 43.1 | 4 | 140 | 18 | 100 | 18 | 1.83 | |
| 40 | – | 44.5 | 45.5 | 4 | 150 | 18 | 110 | 18 | 2.12 |
| 48.3 | – | 49 | 4 | 150 | 18 | 110 | 18 | 2.09 | |
| 50 | – | 57 | 58.1 | 4 | 165 | 20 | 125 | 18 | 2.78 |
| 60.3 | – | 61.1 | 4 | 165 | 20 | 125 | 18 | 2.74 | |
| 65 | 76.1 | – | 77.1 | 8 | 185 | 22 | 145 | 18 | 3.48 |
| 80 | 88.9 | – | 90.3 | 8 | 200 | 24 | 160 | 18 | 4.33 |
| 100 | – | 108 | 109.6 | 8 | 235 | 24 | 190 | 22 | 5.82 |
| 114.3 | – | 115.9 | 8 | 235 | 24 | 190 | 22 | 5.61 | |
| 125 | – | 133 | 134.8 | 8 | 270 | 26 | 220 | 26 | 7.91 |
| 139.7 | – | 141.6 | 8 | 270 | 26 | 220 | 26 | 7.6 | |
| 150 | – | 159 | 161.1 | 8 | 300 | 28 | 250 | 26 | 10.12 |
| 168.3 | – | 170.5 | 8 | 300 | 28 | 250 | 26 | 9.58 | |
| 175 | 193.7 | – | 196.1 | 12 | 350 | 32 | 295 | 30 | 14.45 |
| 200 | 219.1 | – | 221.8 | 12 | 375 | 34 | 320 | 30 | 16.9 |
| 250 | – | 267 | 270.2 | 12 | 450 | 38 | 385 | 33 | 27.28 |
| 273 | – | 276.2 | 12 | 450 | 38 | 385 | 33 | 26.51 | |
| 300 | 323.9 | – | 327.6 | 16 | 515 | 42 | 450 | 33 | 36.38 |
| 350 | 355.6 | – | 359.7 | 16 | 580 | 46 | 510 | 36 | 52.83 |
| – | 368 | 372.2 | 16 | 580 | 46 | 510 | 36 | 50.24 | |
| 400 | 406.4 | – | 411 | 16 | 660 | 50 | 585 | 39 | 74.71 |
| – | 419 | 423.7 | 16 | 660 | 50 | 585 | 39 | 71.44 | |
| 500 | 508 | – | 513.6 | 20 | 755 | 52 | 670 | 42 | 86.87 |
| 600 | 610 | – | 616.5 | 20 | 890 | 54 | 795 | 48 | 121.84 |
| 700 | 711 | – | 716 | 24 | 995 | 58 | 900 | 48 | 150.93 |
| 800 | 813 | – | 818 | 24 | 1140 | 64 | 1030 | 56 | 219.08 |
| 900 | 914 | – | 920 | 28 | 1250 | 70 | 1140 | 56 | 271.16 |
| 1000 | 1016 | – | 1022 | 28 | 1360 | 78 | 1250 | 56 | 344.95 |
| Temperature (°C) | Class | ||||||
|---|---|---|---|---|---|---|---|
| Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 | |
| -29 – 38 | 19.8 | 51.7 | 68.9 | 103.4 | 155 | 259 | 431 |
| 50 | 19.5 | 51.7 | 68.9 | 103.4 | 155 | 259 | 431 |
| 100 | 17.7 | 51.5 | 68.7 | 103.0 | 155 | 258 | 429 |
| 150 | 15.8 | 50.2 | 66.8 | 100.3 | 151 | 251 | 418 |
| 200 | 13.8 | 48.6 | 64.8 | 97.2 | 146 | 243 | 405 |
| 250 | 12.1 | 46.3 | 61.7 | 92.7 | 139 | 232 | 386 |
| 300 | 10.2 | 42.9 | 57.0 | 85.7 | 129 | 214 | 357 |
| 325 | 9.3 | 41.4 | 55.0 | 82.6 | 124 | 207 | 344 |
| 350 | 8.4 | 40.0 | 53.4 | 80.0 | 120 | 200 | 334 |
| 375 | 7.4 | 37.8 | 50.4 | 75.7 | 114 | 189 | 315 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104 | 174 | 290 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 144 | 240 |
| 450 | 4.6 | 23.0 | 30.7 | 46.0 | 69.0 | 115 | 192 |
| 475 | 3.7 | 17.1 | 22.8 | 34.2 | 51.3 | 85.4 | 142 |
| 500 | 2.8 | 11.6 | 15.4 | 23.2 | 34.7 | 57.9 | 96.5 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
Yes, we offer custom sizes for Big Diameter Flanges to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
