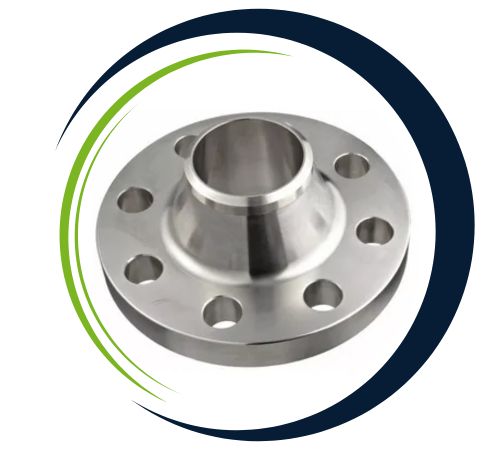

Hudson Flanges, a trusted manufacturer and supplier in Midland, UK, specializes in DIN 2632 PN10 Weld Neck Flanges designed for secure, low to medium-pressure applications. These high-quality flanges ensure reliable, leak-proof connections, ideal for industries such as oil and gas, petrochemical, and water treatment. Built to meet rigorous standards, Hudson’s weld neck flanges offer durability and precise alignment for stable system performance. Rely on Hudson Flanges for dependable products crafted to enhance the safety and efficiency of your piping systems.
DIN 2632 PN10 Weld Neck Flanges are typically made from carbon steel or alloy steel, ensuring strong, corrosion-resistant performance. Mechanically, they offer moderate tensile strength and durability, suited for low to medium-pressure systems. With a robust weld neck design, these flanges reduce stress concentration at the weld joint, promoting long-lasting connections. Advantages include secure, leak-proof connections, precise alignment, and enhanced stability, which are essential in industries like oil and gas, water treatment, and petrochemicals. Their durability and reliability ensure optimal performance in fluctuating temperature and pressure environments.
| Size Chart | 1/2″ (15 NB) To 48″ (1200NB) |
| Coating Flanges Faces | Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint |
| Design For Size | DIN, EN, ASA, PN, JIS, BS, ANSI, ASME |
| Pressure Rating Table | Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS |
| Supporting Flanges Material | Flanges Bolts, Gasket, Ring Joint |
| Connect Type Type | FF, RTJ, SMF, LMF, RF, LJF |
| Production Process | Forged, Heat Treated and Machined |
| Standard | ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange |
| Machining Equipment | Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc |
|
Germany standard flange DIN 2632 welding neck flanges; nominal pressure 10 |
||||||||||||||||
|
Brides à souder à collerette DIN 2632: pression nominale 10 |
||||||||||||||||
| Pipe | Flange | Neck | Raised face | Screws | Weight | |||||||||||
| (7,85 Kg/dm3) | ||||||||||||||||
| Rated | d1 | D | b | k | h1 | d3 | s | r | h2 | d4 | f | Holes | Thread | d2 | Kg | |
| Diameter | ISO Series | DIN Series | ||||||||||||||
| 15 | – | 20 | 95 | 14 | 65 | 35 | 30 | 2 | 4 | 6 | 45 | 2 | 4 | M 12 | 14 | 0,648 |
| 21,3 | – | 32 | ||||||||||||||
| 20 | – | 25 | 105 | 16 | 75 | 38 | 38 | 2,3 | 4 | 6 | 58 | 2 | 4 | M 12 | 14 | 0,952 |
| 26,9 | – | 40 | ||||||||||||||
| 25 | – | 30 | 115 | 16 | 85 | 38 | 42 | 2,6 | 4 | 6 | 68 | 2 | 4 | M 12 | 14 | 1,14 |
| 33,7 | – | 45 | ||||||||||||||
| 32 | – | 38 | 140 | 16 | 100 | 40 | 52 | 2,6 | 6 | 6 | 78 | 2 | 4 | M 16 | 18 | 1,69 |
| 42,4 | – | 56 | ||||||||||||||
| 40 | – | 44,5 | 150 | 16 | 110 | 42 | 60 | 2,6 | 6 | 7 | 88 | 3 | 4 | M 16 | 18 | 1,86 |
| 48,3 | – | 64 | ||||||||||||||
| 50 | – | 57 | 165 | 18 | 125 | 45 | 72 | 2,9 | 6 | 8 | 102 | 3 | 4 | M 16 | 18 | 2,53 |
| 60,3 | – | 75 | ||||||||||||||
| 65 | 76,1 | – | 185 | 18 | 145 | 45 | 90 | 2,9 | 6 | 10 | 122 | 3 | 4 | M 16 | 18 | 3,06 |
| 80 | 88,9 | – | 200 | 20 | 160 | 50 | 105 | 3,2 | 8 | 10 | 138 | 3 | 8 | M 16 | 18 | 3,7 |
| 100 | – | 108 | 220 | 20 | 180 | 52 | 125 | 3,6 | 8 | 12 | 158 | 3 | 8 | M 16 | 18 | 4,62 |
| 114,3 | – | 131 | ||||||||||||||
| 125 | – | 133 | 250 | 22 | 210 | 55 | 150 | 4 | 8 | 12 | 188 | 3 | 8 | M 16 | 18 | 6,3 |
| 139,7 | – | 156 | ||||||||||||||
| 150 | – | 159 | 285 | 22 | 240 | 55 | 175 | 4,5 | 10 | 12 | 212 | 3 | 8 | M 20 | 22 | 7,75 |
| 168,3 | – | 184 | ||||||||||||||
| 200 | 219,1 | – | 340 | 24 | 295 | 62 | 235 | 5,9 | 10 | 16 | 268 | 3 | 8 | M 20 | 22 | 11,3 |
| 250 | – | 267 | 395 | 26 | 350 | 68 | 285 | 6,3 | 12 | 16 | 320 | 3 | 12 | M 20 | 22 | 14,7 |
| 273 | – | 292 | ||||||||||||||
| 300 | 323,9 | – | 445 | 26 | 400 | 68 | 344 | 7,1 | 12 | 16 | 370 | 4 | 12 | M 20 | 22 | 17,4 |
| 350 | 355,6 | – | 505 | 26 | 460 | 68 | 385 | 7,1 | 12 | 16 | 430 | 4 | 16 | M 20 | 22 | 23,6 |
| – | 368 | 21,6 | ||||||||||||||
| 400 | 406,4 | – | 565 | 26 | 515 | 72 | 440 | 7,1 | 12 | 16 | 482 | 4 | 16 | M 24 | 26 | 28,6 |
| – | 419 | 26,2 | ||||||||||||||
| (450) | 457 | – | 615 | 28 | 565 | 72 | 488 | 7,1 | 12 | 16 | 532 | 4 | 20 | M 24 | 26 | 31,5 |
| 500 | 508 | – | 670 | 28 | 620 | 75 | 542 | 7,1 | 12 | 16 | 585 | 4 | 20 | M 24 | 26 | 38,1 |
| 600 | 610 | – | 780 | 28 | 725 | 80 | 642 | 7,1 | 12 | 18 | 685 | 5 | 20 | M 27 | 30 | 44,6 |
| 700 | 711 | – | 895 | 30 | 840 | 80 | 745 | 8 | 12 | 18 | 800 | 5 | 24 | M 27 | 30 | 62,4 |
| 800 | 813 | – | 1015 | 32 | 950 | 90 | 850 | 8 | 12 | 18 | 905 | 5 | 24 | M 30 | 33 | 84,1 |
| 900 | 914 | – | 1115 | 34 | 1050 | 95 | 950 | 10 | 12 | 20 | 1005 | 5 | 28 | M 30 | 33 | 98,5 |
| 1000 | 1016 | – | 1230 | 34 | 1160 | 95 | 1052 | 10 | 16 | 20 | 1110 | 5 | 28 | M 33 | 36 | 115 |
Hudson Flanges, a leading supplier in Midland, UK, offers an extensive selection of DIN 2632 PN10 Weld Neck Flanges , including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
DIN 2632 PN10 Weld Neck Flanges are widely used in low to medium-pressure piping systems across industries such as oil and gas, petrochemicals, water treatment, and HVAC. These flanges provide secure, leak-proof connections between pipes, valves, and other equipment, ensuring system reliability. Their weld neck design minimizes stress at the connection points, making them ideal for applications with mild temperature and pressure fluctuations. Commonly used in pipelines and process systems, these flanges offer enhanced stability and alignment, helping maintain smooth operation and system integrity in critical applications.
Yes, we offer custom sizes for DIN 2632 PN10 Weld Neck Flanges to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
| NPS NPS (inch) | |||||
|---|---|---|---|---|---|
| Diammeter of Flange (inch) | No. of Bolts | Diammeter of Bolts (inch) | Diammeter of Bolt Holes (inch) | Bolt Circle (inch) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
| 18 inch DIN 2632 PN10 Carbon Steel Weld Neck Flange | DIN 2632 PN10 Weld Neck Flange Dimensions in mm |
| Alloy Steel DIN 2632 PN10 Welding Neck Flanges | Copper Nickel DIN 2632 PN10 Weld Neck Flanges at Best Price |
| DIN 2632 PN10 Weld Neck Flange Dimensions | Raised Face DIN 2632 PN10 Weld Neck Flange Manufacturer |
| DIN 2632 PN10 Welding Neck FF Flange Supplier | Suppliers of DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 Weld Neck Pipe Flanges Wholesaler | DIN 2632 PN10 WNRF Flanges Supplier |
| 30 inch DIN 2632 PN10 Weld Neck Flange Dealer | Raised Face DIN 2632 PN10 Weld Neck Flanges Manufacturer |

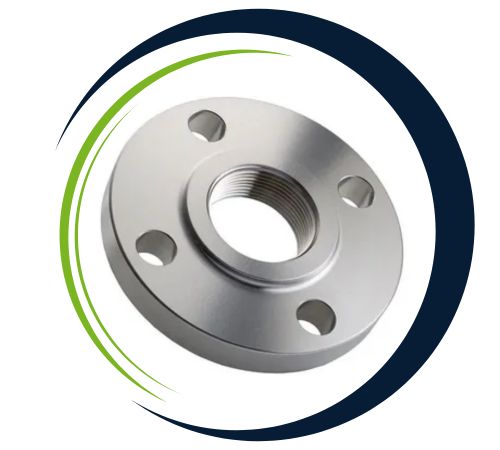

| Nickel Alloy DIN 2632 PN10 Welding Neck Flange | Mild Steel DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 WNRF Flange Stockist in UK | Raised Faced DIN 2632 PN10 welding-neck flanges Dealer in United Kingdom |
| Raised Face DIN 2632 PN10 Weld Neck Plate Flanges | Titanium DIN 2632 PN10 Welding Neck Flanges |
| German Standard DIN 2632 PN10 Weld Neck Flanges | DIN 2632 PN10 Weld Neck Flange Supplier in UK |

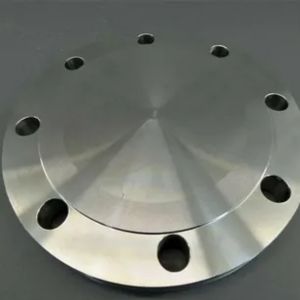

| Stainless Steel DIN 2632 PN10 Weld Neck Flange | ASTM B564 Raised Faced DIN 2632 PN10 Weld Neck Flanges |
| DIN 2632 PN10 WNRF Flange Exporter | DIN 2632 PN10 Weld Neck Flange Pressure Ratings |
| DIN 2632 PN10 Weld Neck Flange Manufacturer | Flat Face DIN 2632 PN10 Weld Neck Flange Manufacturer |
| DIN 2632 PN10 WNRF Flanges Supplier in Midland | Alloy Steel DIN 2632 PN10 Weld Neck Flanges Manufacturer in United Kingdom |
| DIN 2632 PN10 Welding Neck Flanges Supplier in Nottingham | MS DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 Large Diameter Weld Neck Flange | 30 Inch DIN 2632 PN10 Weld Neck Pipe Flange Dimensions |
| Carbon Steel Raised Face DIN 2632 PN10 Weld Neck Flange Stockist | Duplex Steel DIN 2632 PN10 WNRF Flanges Supplier in Liversedge |
| ASME SA105N Raised Faced DIN 2632 PN10 Weld Neck Flanges | 18 inch Carbon Steel DIN 2632 PN10 Weld Neck Flange |
| DIN 2632 PN10 WNRF Flanges Distributor in West Midland | Flat Face DIN 2632 PN10 Weld Neck Flanges Exporter |

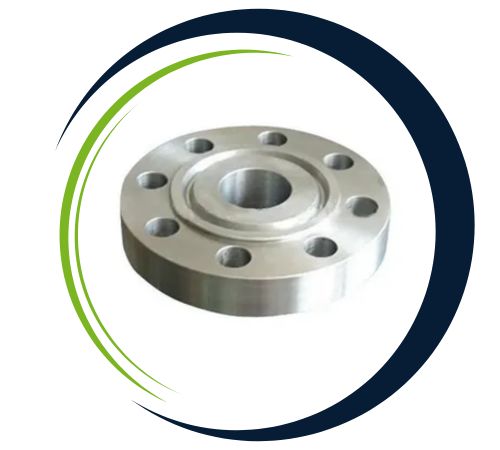

| DIN 2632 PN10 Weld Neck Pipe Flanges Supplierin Liversedge | Duplex Steel DIN 2632 PN10 Weld Neck Flanges |
| 8 Inch DIN 2632 PN10 Welding Neck Pipe Flanges | DIN 2632 PN10 Weld Neck Flanges Stockist |
| 4 inch Stainless Steel DIN 2632 PN10 Weld Neck Flange | DIN 2632 PN10 Weld Neck RF Flanges Stockholder |
| Carbon Steel DIN 2632 PN10 Welding Neck Flange | DIN 2632 PN10 Weld Neck RF Flange Supplier |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
