Hudson Flanges is a reputable Midland, UK-based manufacturer and supplier of high quality flanges for use in various industrial processes. We have an exhaustive list of products, including expander flanges, that are made to perform reliably and last long even in harsh conditions Our experts are committed to provide custom-made technology solutions to suit our clients’ individual requirements. With customer satisfaction being our main focus, we assure quality products at competitive prices and on time delivery.
Expander flanges are typically made of carbon steel, stainless steel, or steel alloys for strength and corrosion. It is tapered to facilitate expansion of the pipe diameter. Technical properties include high tensile strength, shock resistance, and the ability to handle high pressure and temperature changes. Advantages of expander flanges include their ability to provide safe, flexible connections between different pipe sizes, easy installation, durability, and low cost They are widely used in oil and gas, chemical and electrical industries performance due to its flexibility and reliability.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Expander Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

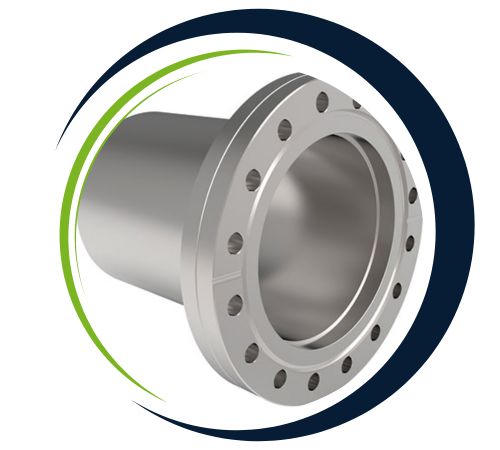

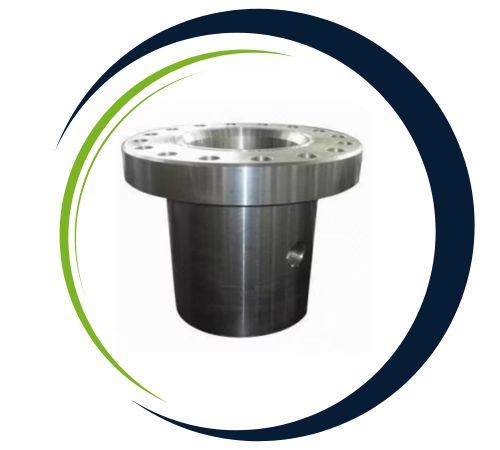

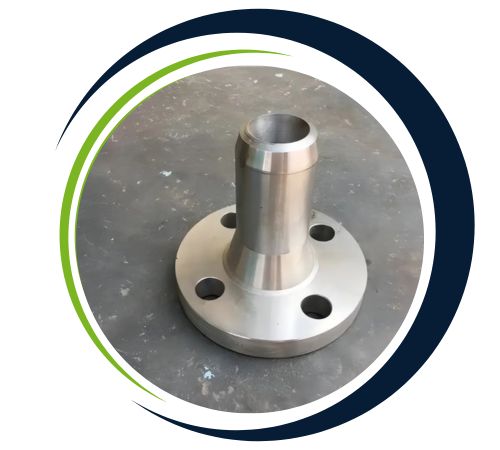

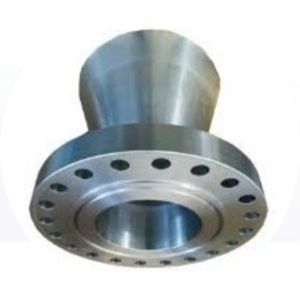

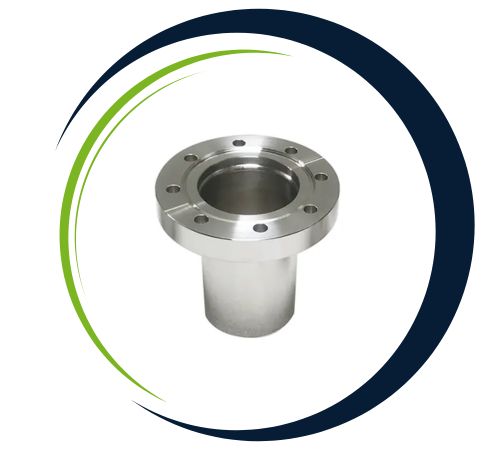

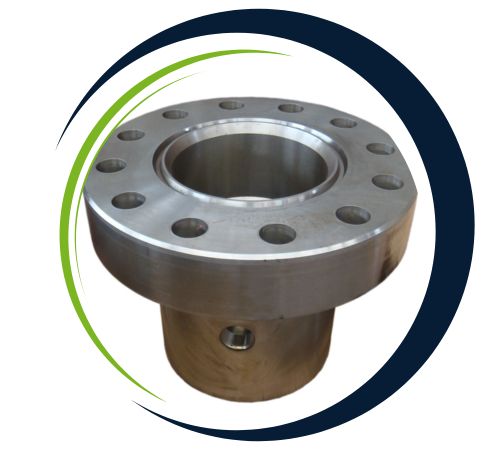

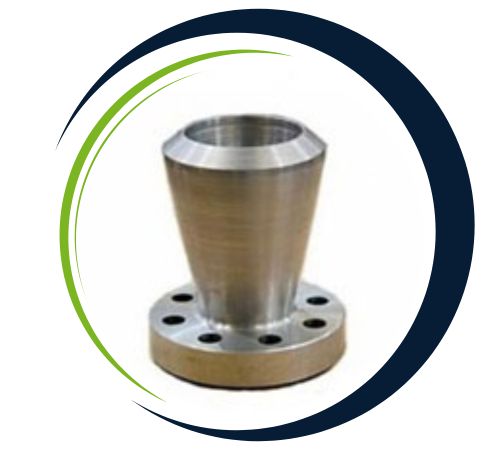

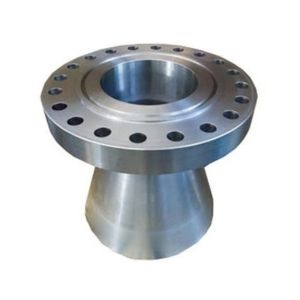

| Material | Titanium Expander Flange, Incoloy Expander Flange, Monel Expander Flange, Nickel Alloy Expander Flange, SMO 254 Expander Flange, Brass Expander Flange, Stainless Steel Expander Flange, AISI 4130 Expander Flange, Inconel Expander Flange, Duplex Steel Expander Flange, Hastelloy Expander Flange, Alloy 20 Expander Flange, Copper Nickel Expander Flange, Super Duplex Expander Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Hudson Flanges, a leading supplier in Midland, UK, offers an extensive selection of Expander Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Expander flanges are widely applied in piping systems to join pipes of varied sizes, allowing for smooth transition from one pipe size to another They find extensive application in oil, gas, and chemical transportation operations, power generation work, and water treatment. Expander flanges ensure that pressure variations are managed, thus lessening pressure stress on the system. They are well suited for operations where there is limited space and provision for flexibility during installation. Expansion flanges find application in heat exchanger, pump and compressor equipment for secure, leak-free connection while allowing temperature expansion and pressure variation.
| Normal Pipe Sizes | Outside Flange Diameter A | Raised Face Diameter B | Flange Thickness C | Bore Diameter
| Bore Diameter
| Hub Diameter at Weld
| Diameter of Hub at Base
| Hub Length
| Compound Taper
| Slope at Bevel
| No. of Bolt Holes | Bolt Holes Diameter | Diameter Of Bolt Circle
| Approx. Weight in kg (lb) | Design Type |
| 2 x 3 | 6 | 3 5/8 | 3/4 | 2.067 | 3.068 | 3.500 | 3 1/16 | 2 1/2 | – | 16° | 4 | 3/4 | 4 3/4 | 6 | A |
| 2 x 4 | 6 | 3 5/8 | 3/4 | 2.067 | 4.026 | 4.500 | 3 1/16 | 3 5/8 | 1/2 | 29° * | 4 | 3/4 | 4 3/4 | 6 | C |
| 3 x 4 | 7 1/2 | 5 | 15/16 | 3.068 | 4.026 | 4.500 | 4 1/4 | 2 3/4 | – | 15° | 4 | 3/4 | 6 | 11 | A |
| 4 x 6 | 9 | 6 3/16 | 15/16 | 4.026 | 6.065 | 6.625 | 5 5/16 | 3 1/4 | 1/2 | 30° * | 8 | 3/4 | 7 1/2 | 15 | C |
| 6 x 8 | 11 | 8 1/2 | 1 | 6.065 | 7.981 | 8.625 | 7 9/16 | 4 | 1/2 | 28° * | 8 | 7/8 | 9 1/2 | 24 | C |
| 8 x 10 | 13 1/2 | 10 5/8 | 1 1/8 | 7.981 | 10.020 | 10.750 | 9 11/16 | 4 | 1/2 | 29° * | 8 | 7/8 | 11 3/4 | 39 | C |
| 8 x 12 | 13 1/2 | 10 5/8 | 1 1/8 | 7.981 | 12.000 | 12.750 | 9 11/16 | 6 | 1/2 | 29° * | 8 | 7/8 | 11 3/4 | 39 | C |
| 10 x 12 | 16 | 12 3/4 | 1 3/16 | 10.020 | 12.000 | 12.750 | 12 | 3 15/16 | 1/2 | 39° * | 12 | 1 | 14 1/4 | 52 | C |
| 10 x 14 | 16 | 12 3/4 | 1 3/16 | 10.020 | 13.250 | 14.000 | 12 | 5 7/16 | 5/8 | 30° * | 12 | 1 | 14 1/4 | 52 | C |
| 12 x 14 | 19 | 15 | 1 1/4 | 12.000 | 13.250 | 14.000 | 14 3/8 | 4 1/2 | – | 11° | 12 | 1 | 17 | 80 | D |
| 12 x 16 | 19 | 15 | 1 1/4 | 12.000 | 15.250 | 16.000 | 14 3/8 | 4 13/16 | 5/8 | 30° * | 12 | 1 | 17 | 80 | C |
| 14 x 16 | 21 | 16 1/4 | 1 3/8 | 13.250 | 15.250 | 16.000 | 15 3/4 | 5 | – | 15° | 12 | 1 1/8 | 18 3/4 | 120 | A |
| 14 x 18 | 21 | 16 1/4 | 1 3/8 | 13.250 | 17.250 | 18.000 | 15 3/4 | 5 11/16 | 5/8 | 30° * | 12 | 1 1/8 | 18 3/4 | 120 | C |
| 18 x 20 | 25 | 21 | 1 9/16 | 17.250 | 19.250 | 20.000 | 19 7/8 | 5 1/2 | – | 14° | 16 | 1 1/4 | 22 3/4 | 140 | A |
| 18 x 24 | 25 | 21 | 1 9/16 | 17.250 | 23.250 | 24.000 | 19 7/8 | 8 13/16 | 5/8 | 28° * | 16 | 1 1/4 | 22 3/4 | 140 | C |
| 20 x 24 | 27 1/2 | 23 | 1 11/16 | 19.250 | 23.250 | 24.000 | 22 | 6 7/16 | 5/8 | 30° * | 20 | 1 1/4 | 25 | 170 | C |
| 24 x 30 | 32 | 27 1/4 | 1 7/8 | 23.250 | 29.250 | 30.000 | 26 1/8 | 8 11/16 | 3/4 | 30° * | 20 | 1 3/8 | 29 1/2 | 260 | C |
| Normal Pipe Sizes | Outside Flange Diameter A | Raised Face Diameter B | Flange Thickness C | Bore Diameter Of D | Diameter of Bore D2 | Diameter of Hub at Weld H | Diameter of Hub at Base J | Hub Length K | Compound Taper CT | Slope at Bevel SB | No. of Bolt Holes | Bolt Holes Diameter | Diameter Bolt Circle P | Approx. Weight in kg (lb) | Design Type |
| 2 x 3 | 6 1/2 | 3 5/8 | 7/8 | 2.067 | 3.068 | 2.375 | 3 5/16 | 2 3/4 | – | 15° | 8 | 3/4 | 5 | 9 | A |
| 2 x 4 | 6 1/2 | 3 5/8 | 7/8 | 2.067 | 4.026 | 2.375 | 3 5/16 | 2 3/4 | 1/2 | 29° * | 8 | 3/4 | 5 | 9 | C |
| 3 x 4 | 8 1/4 | 5 | 1 1/8 | 3.068 | 4.026 | 3.500 | 4 5/8 | 3 1/8 | – | 13° | 8 | 7/8 | 6 5/8 | 15 | D |
| 4 x 6 | 10 | 6 3/16 | 1 1/4 | 4.026 | 6.065 | 4.500 | 5 3/4 | 3 3/8 | 1/2 | 30° * | 8 | 7/8 | 7 7/8 | 25 | C |
| 6 x 8 | 12 1/2 | 8 1/2 | 1 7/16 | 6.065 | 7.981 | 6.625 | 8 1/8 | 3 7/8 | 1/2 | 22° * | 12 | 7/8 | 10 5/8 | 42 | B |
| 8 x 10 | 15 | 10 5/8 | 1 5/8 | 7.981 | 10.020 | 8.625 | 10 1/4 | 4 3/8 | – | 20° | 12 | 1 | 13 | 67 | A |
| 10 x 12 | 17 1/2 | 12 3/4 | 1 7/8 | 10.020 | 12.000 | 10.750 | 12 5/8 | 4 5/8 | – | 20° | 16 | 1 1/8 | 15 1/4 | 91 | A |
| 12 x 14 | 20 1/2 | 15 | 2 | 12.000 | 13.250 | 12.750 | 14 3/4 | 5 1/8 | – | 11° | 16 | 1 1/4 | 17 3/4 | 138 | D |
| 14 x 16 | 23 | 16 1/4 | 2 1/8 | 13.250 | 15.250 | 14.000 | 16 3/4 | 5 5/8 | – | 16° | 20 | 1 1/4 | 20 1/4 | 186 | D |
| 16 x 18 | 25 1/2 | 18 1/2 | 2 1/4 | 15.250 | 17.250 | 16.000 | 19 | 5 3/4 | – | 16° | 20 | 1 3/8 | 22 1/2 | 246 | D |
| 18 x 20 | 28 | 21 | 2 3/8 | 17.250 | 19.250 | 18.000 | 21 | 6 1/4 | – | 14° | 24 | 1 3/8 | 24 3/4 | 305 | D |
| 20 x 24 | 30 1/2 | 23 | 2 1/2 | 19.250 | 23.250 | 20.000 | 23 1/8 | 6 3/8 | 5/8 | 29° * | 24 | 1 3/8 | 27 | 378 | B |
| 24 x 30 | 36 | 27 1/4 | 2 3/4 | 23.250 | 29.250 | 24.000 | 27 5/8 | 6 5/8 | 3/4 | 30° * | 24 | 1 5/8 | 32 | 545 | B |
Yes, we offer custom sizes for Expander Flange to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
