Hudson Flanges is a trusted manufacturer and supplier based in Midland, UK, renowned for delivering premium-quality flanges for diverse industrial applications. Specializing in precision engineering and exceptional durability, we serve industries such as oil and gas, petrochemical, and marine. Our Hastelloy Plate Flanges, made from corrosion-resistant and high-strength Hastelloy alloys, offer superior performance in demanding environments. With a commitment to quality, competitive pricing, and timely delivery, we ensure client satisfaction across global markets.
Hastelloy plate flanges are made from a high-performance alloy primarily composed of nickel, molybdenum, chromium, iron, and cobalt, ensuring exceptional corrosion resistance. They possess outstanding mechanical properties, including high tensile strength, excellent ductility, and superior resistance to stress corrosion cracking, pitting, and crevice corrosion. These flanges maintain structural integrity even in high-temperature and high-pressure conditions. Their advantages include remarkable durability, chemical compatibility, and resistance to aggressive environments. Additionally, their ease of fabrication and weldability make them ideal for chemical processing, marine, and power generation applications, ensuring long-term reliability and performance.

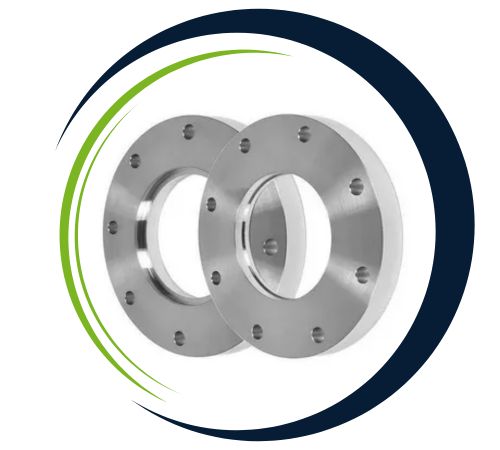

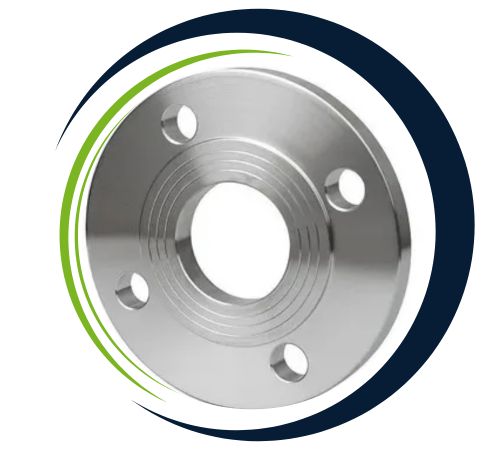

Hastelloy Plate Flanges Specification : ASTM B564 / ASME SB564
Dimension Standard : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
DIN Flanges : DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges : JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges : BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
Hudson Flanges, a premier supplier in Midland, UK, specializes in high-quality Hastelloy Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Hastelloy Plate Flanges are widely used in industries requiring exceptional corrosion resistance and durability. Common applications include chemical processing, where they withstand harsh acids, alkalis, and oxidizing agents, and marine environments, where their resistance to seawater corrosion is critical. They are also used in oil and gas systems for handling aggressive fluids and in power plants for high-temperature operations. Their robust mechanical properties and reliability make them ideal for pressure vessels, heat exchangers, and pipelines in demanding environments, ensuring long-term performance and leak-proof connections.
| STANDARD | UNS | WNR. | JIS | EN |
|---|---|---|---|---|
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | NiCr21Mo14W |
| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | NiMo16Cr15W |
|
Standard |
Class |
Diameter |
Bolt Circle Diameter |
Number of Bolts |
Bolt Size |
Diameter of Bolt Hole |
|---|---|---|---|---|---|---|
|
AS4087 Flanges |
PN14 Flanges |
95 |
67 |
4 |
M12 |
14 |
|
AS 2129 Flange |
Table C Flanges |
95 |
67 |
4 |
13 |
14 |
|
Table D Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table E Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table F Flanges |
95 |
67 |
4 |
13 |
14 |
|
|
Table H Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
Table J Flanges |
114 |
83 |
4 |
16 |
17 |
|
|
ANSI B16.5 Flanges |
ANSI 150 Flanges |
89 |
60 |
4 |
13 |
16 |
|
ANSI 300 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 600 Flanges |
95 |
67 |
4 |
13 |
16 |
|
|
ANSI 900 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ANSI 1500 Flanges |
121 |
83 |
4 |
19 |
22 |
|
|
ISO 7005 (DIN) Flange |
PN6 Flanges |
80 |
55 |
4 |
M10 |
11 |
|
PN10 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN16 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN20 Flanges |
90 |
60.5 |
4 |
M14 |
16 |
|
|
PN25 Flanges |
95 |
65 |
4 |
M12 |
14 |
|
|
PN40 Flanges |
95 |
65 |
4 |
M12 |
14 |
Yes, we offer custom sizes for Hastelloy Plate Flanges to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
