Hudson Flanges, a UK-based company in Midland, is a premier manufacturer and supplier of high-class flange solutions that exhibit precision, reliability, and engineering excellence. Of the company’s wide range of products, High Hub Blind Flanges are renowned for their heavy-duty design that is best suited for sealing piping systems with high pressure. Made from high-quality materials, these flanges provide leak-proof connections and long-term performance. Providing services for the oil & gas, petrochemicals and power industries, Hudson Flanges aims to provide quality products that are of international standards.
High quality hub blind flanges are usually constructed from materials like carbon steel, stainless steel, or steel alloys, which offer superior strength and corrosion resistance Their construction offers excellent durability in extreme environments. Mechanical characteristics are tensile strength, superior shock resistance, and resistance to pressures and temperatures. The flanges are made to be fully encasing the piping system. Benefits are simplicity of installation, superior sealing, minimal maintenance, and reliability in harsh conditions. Cost savings and flexibility in most industrial applications are offered by high hub blind flanges.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

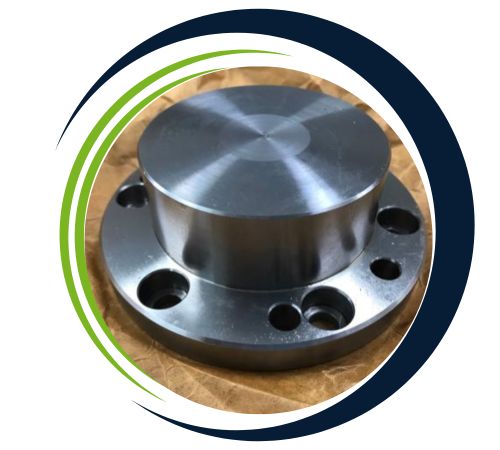

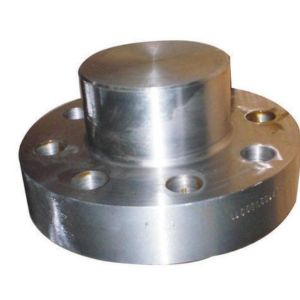

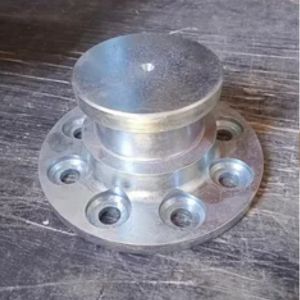

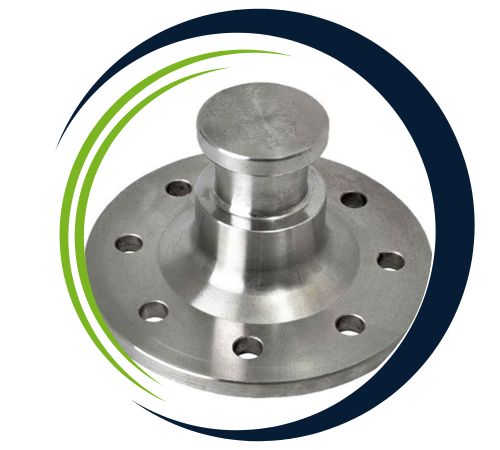

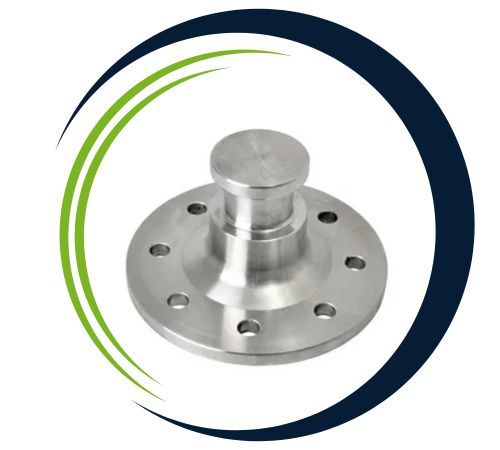

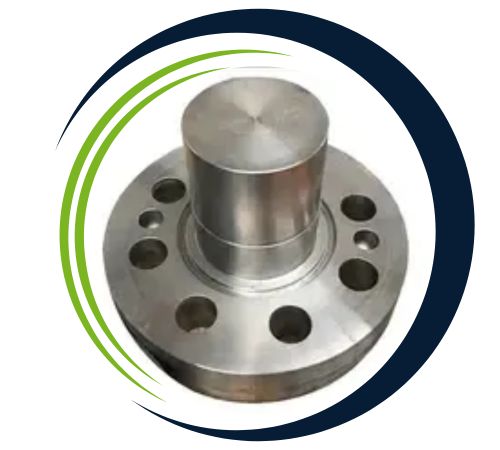

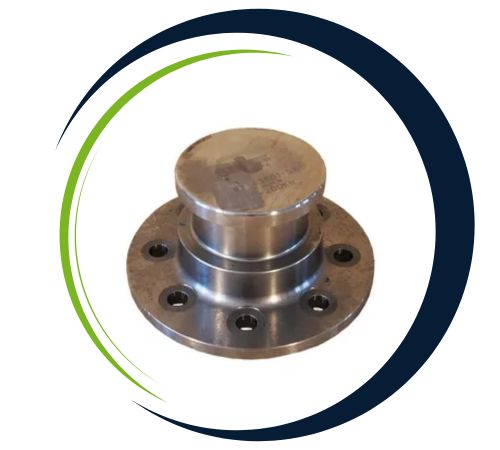

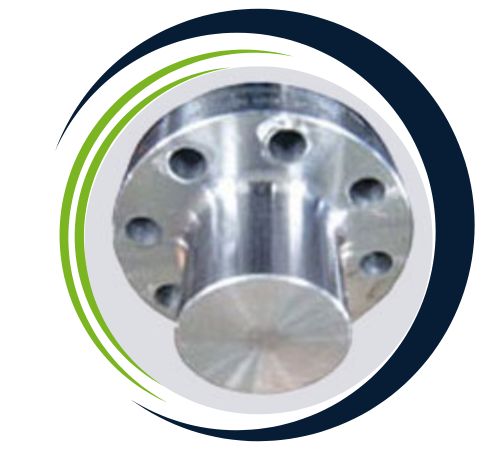

| Material | Monel High Hub Blind Flange, Hastelloy High Hub Blind Flange, Alloy 20 High Hub Blind Flange, Super Duplex High Hub Blind Flange, Duplex Steel High Hub Blind Flange, Nickel Alloy High Hub Blind Flange, Titanium High Hub Blind Flange, Inconel High Hub Blind Flange, Brass High Hub Blind Flange, SMO 254 High Hub Blind Flange, Stainless Steel High Hub Blind Flange, Incoloy High Hub Blind Flange, AISI 4130 High Hub Blind Flange, Copper Nickel High Hub Blind Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| ANSI B16.5 High Hub Blind Face Flange Wall Thickness | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS (Normal Pipe Sizes) | Outside Daimeter (O.D.) | Schedule 10 | Schedule 20 | Schedule 30 | STD Wall | Schedule 40 | Schedule 60 | EXT Hvy | Schedule 80 | Schedule 100 | Schedule 120 | Schedule 140 | Schedule 160 | XX Hvy |
| ½ | 0.84 | 0.083 | … | … | 0.109 | 0.109 | … | 0.147 | 0.147 | … | … | … | 0.188 | 0.294 |
| ¾ | 1.05 | 0.083 | … | … | 0.113 | 0.113 | … | 0.154 | 0.154 | … | … | … | 0.219 | 0.308 |
| 1 | 1.315 | 0.109 | … | … | 0.133 | 0.133 | … | 0.179 | 0.179 | … | … | … | 0.25 | 0.358 |
| 1 ¼ | 1.66 | 0.109 | … | … | 0.14 | 0.14 | … | 0.191 | 0.191 | … | … | … | 0.25 | 0.382 |
| 1 ½ | 1.9 | 0.109 | … | … | 0.145 | 0.145 | … | 0.2 | 0.2 | … | … | … | 0.281 | 0.4 |
| 2 | 2.375 | 0.109 | … | … | 0.154 | 0.154 | … | 0.218 | 0.218 | … | … | … | 0.344 | 0.436 |
| 2 ½ | 2.875 | 0.12 | … | … | 0.203 | 0.203 | … | 0.276 | 0.276 | … | … | … | 0.375 | 0.552 |
| 3 | 3.5 | 0.12 | … | … | 0.216 | 0.216 | … | 0.3 | 0.3 | … | … | … | 0.438 | 0.6 |
| 3 ½ | 4 | 0.12 | … | … | 0.226 | 0.226 | … | 0.318 | 0.318 | … | … | … | … | 0.636 |
| 4 | 4.5 | 0.12 | … | … | 0.237 | 0.237 | … | 0.337 | 0.337 | … | 0.438 | … | 0.531 | 0.674 |
| 5 | 5.563 | 0.134 | … | … | 0.258 | 0.258 | … | 0.375 | 0.375 | … | 0.5 | … | 0.625 | 0.75 |
| 6 | 6.625 | 0.134 | … | … | 0.28 | 0.28 | … | 0.432 | 0.432 | … | 0.562 | … | 0.719 | 0.864 |
| 8 | 8.625 | 0.148 | 0.25 | 0.277 | 0.322 | 0.322 | 0.406 | 0.5 | 0.5 | 0.594 | 0.719 | 0.812 | 0.906 | 0.875 |
| 10 | 10.75 | 0.165 | 0.25 | 0.307 | 0.365 | 0.365 | 0.5 | 0.5 | 0.594 | 0.719 | 0.844 | 1 | 1.125 | 1 |
| 12 | 12.75 | 0.18 | 0.25 | 0.33 | 0.375 | 0.406 | 0.562 | 0.5 | 0.688 | 0.844 | 1 | 1.125 | 1.312 | 1 |
| 14 | 14 | 0.25 | 0.312 | 0.375 | 0.375 | 0.438 | 0.594 | 0.5 | 0.75 | 0.938 | 1.094 | 1.25 | 1.406 | … |
| 16 | 16 | 0.25 | 0.312 | 0.375 | 0.375 | 0.5 | 0.656 | 0.5 | 0.844 | 1.031 | 1.219 | 1.438 | 1.594 | … |
| 18 | 18 | 0.25 | 0.312 | 0.438 | 0.375 | 0.562 | 0.75 | 0.5 | 0.938 | 1.156 | 1.375 | 1.562 | 1.781 | … |
| 20 | 20 | 0.25 | 0.375 | 0.5 | 0.375 | 0.594 | 0.812 | 0.5 | 1.031 | 1.281 | 1.5 | 1.75 | 1.969 | … |
| 22 | 22 | 0.25 | … | … | 0.375 | … | … | 0.5 | … | … | …. | …. | …. | …. |
| 24 | 24 | 0.25 | 0.375 | 0.562 | 0.375 | 0.688 | 0.969 | 0.5 | 1.219 | 1.531 | 1.812 | 2.062 | 2.344 | …. |
| 26 | 26 | …. | …. | …. | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
| 30 | 30 | 0.312 | 0.5 | 0.625 | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
| 36 | 36 | 0.312 | 0.5 | 0.625 | 0.375 | 0.75 | …. | 0.5 | …. | …. | …. | …. | …. | …. |
| 40 | 40 | …. | …. | …. | 0.375 | …. | …. | 0.5 | …. | …. | …. | …. | …. | …. |
| 42 | 42 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
| 48 | 48 | …….. | …….. | …….. | 0.375 | …….. | …….. | 0.5 | …….. | …….. | …….. | …….. | …….. | …….. |
Hudson Flanges, a leading supplier in Midland, UK, offers an extensive selection of High Hub Blind Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
High hub blind flanges are usually applied to seal pipe ends in piping systems, avoid leaks, and ensure a safe leak proof They are used extensively in power plants, plumbing, construction, oil and gas, chemical manufacturing business, etc. These flanges are suitable for applications that demand high compression resistance and ruggedness in tough environments. The design facilitates simple installation and maintenance, hence ideal for temporary or permanent sealing tips. They are also utilized in maintenance operations to facilitate safe isolation of pipeline components for maintenance or adjustment.
| NPS | Pipe Diameter | Flange Inside Daimeter | Number of holes | Flange Daimeter | Thickness of Flange | Daimeter of Bolt Circle | Daimeter of Bolt Holes | Approx.Weight in kg | |
| DN | ISO | DIN | D5 | BN | D | b | K | d2 | KG/PCS |
| 10 | – | 14 | 14.5 | 4 | 90 | 16 | 60 | 14 | 0.7 |
| 17.2 | – | 17.7 | 4 | 90 | 16 | 60 | 14 | 0.69 | |
| 15 | – | 20 | 21 | 4 | 95 | 16 | 65 | 14 | 0.77 |
| 21.3 | – | 22 | 4 | 95 | 16 | 65 | 14 | 0.77 | |
| 20 | – | 25 | 26 | 4 | 105 | 18 | 75 | 14 | 1.06 |
| 26.9 | – | 27.6 | 4 | 105 | 18 | 75 | 14 | 1.05 | |
| 25 | – | 30 | 31 | 4 | 115 | 18 | 85 | 14 | 1.27 |
| 33.7 | – | 34.4 | 4 | 115 | 18 | 85 | 14 | 1.25 | |
| 32 | – | 38 | 39 | 4 | 140 | 18 | 100 | 18 | 1.86 |
| 42.4 | – | 43.1 | 4 | 140 | 18 | 100 | 18 | 1.83 | |
| 40 | – | 44.5 | 45.5 | 4 | 150 | 18 | 110 | 18 | 2.12 |
| 48.3 | – | 49 | 4 | 150 | 18 | 110 | 18 | 2.09 | |
| 50 | – | 57 | 58.1 | 4 | 165 | 20 | 125 | 18 | 2.78 |
| 60.3 | – | 61.1 | 4 | 165 | 20 | 125 | 18 | 2.74 | |
| 65 | 76.1 | – | 77.1 | 8 | 185 | 22 | 145 | 18 | 3.48 |
| 80 | 88.9 | – | 90.3 | 8 | 200 | 24 | 160 | 18 | 4.33 |
| 100 | – | 108 | 109.6 | 8 | 235 | 24 | 190 | 22 | 5.82 |
| 114.3 | – | 115.9 | 8 | 235 | 24 | 190 | 22 | 5.61 | |
| 125 | – | 133 | 134.8 | 8 | 270 | 26 | 220 | 26 | 7.91 |
| 139.7 | – | 141.6 | 8 | 270 | 26 | 220 | 26 | 7.6 | |
| 150 | – | 159 | 161.1 | 8 | 300 | 28 | 250 | 26 | 10.12 |
| 168.3 | – | 170.5 | 8 | 300 | 28 | 250 | 26 | 9.58 | |
| 175 | 193.7 | – | 196.1 | 12 | 350 | 32 | 295 | 30 | 14.45 |
| 200 | 219.1 | – | 221.8 | 12 | 375 | 34 | 320 | 30 | 16.9 |
| 250 | – | 267 | 270.2 | 12 | 450 | 38 | 385 | 33 | 27.28 |
| 273 | – | 276.2 | 12 | 450 | 38 | 385 | 33 | 26.51 | |
| 300 | 323.9 | – | 327.6 | 16 | 515 | 42 | 450 | 33 | 36.38 |
| 350 | 355.6 | – | 359.7 | 16 | 580 | 46 | 510 | 36 | 52.83 |
| – | 368 | 372.2 | 16 | 580 | 46 | 510 | 36 | 50.24 | |
| 400 | 406.4 | – | 411 | 16 | 660 | 50 | 585 | 39 | 74.71 |
| – | 419 | 423.7 | 16 | 660 | 50 | 585 | 39 | 71.44 | |
| 500 | 508 | – | 513.6 | 20 | 755 | 52 | 670 | 42 | 86.87 |
| 600 | 610 | – | 616.5 | 20 | 890 | 54 | 795 | 48 | 121.84 |
| 700 | 711 | – | 716 | 24 | 995 | 58 | 900 | 48 | 150.93 |
| 800 | 813 | – | 818 | 24 | 1140 | 64 | 1030 | 56 | 219.08 |
| 900 | 914 | – | 920 | 28 | 1250 | 70 | 1140 | 56 | 271.16 |
| 1000 | 1016 | – | 1022 | 28 | 1360 | 78 | 1250 | 56 | 344.95 |
| Temperature (°C) | Class | ||||||
|---|---|---|---|---|---|---|---|
| Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 | |
| -29 – 38 | 19.8 | 51.7 | 68.9 | 103.4 | 155 | 259 | 431 |
| 50 | 19.5 | 51.7 | 68.9 | 103.4 | 155 | 259 | 431 |
| 100 | 17.7 | 51.5 | 68.7 | 103.0 | 155 | 258 | 429 |
| 150 | 15.8 | 50.2 | 66.8 | 100.3 | 151 | 251 | 418 |
| 200 | 13.8 | 48.6 | 64.8 | 97.2 | 146 | 243 | 405 |
| 250 | 12.1 | 46.3 | 61.7 | 92.7 | 139 | 232 | 386 |
| 300 | 10.2 | 42.9 | 57.0 | 85.7 | 129 | 214 | 357 |
| 325 | 9.3 | 41.4 | 55.0 | 82.6 | 124 | 207 | 344 |
| 350 | 8.4 | 40.0 | 53.4 | 80.0 | 120 | 200 | 334 |
| 375 | 7.4 | 37.8 | 50.4 | 75.7 | 114 | 189 | 315 |
| 400 | 6.5 | 34.7 | 46.3 | 69.4 | 104 | 174 | 290 |
| 425 | 5.5 | 28.8 | 38.4 | 57.5 | 86.3 | 144 | 240 |
| 450 | 4.6 | 23.0 | 30.7 | 46.0 | 69.0 | 115 | 192 |
| 475 | 3.7 | 17.1 | 22.8 | 34.2 | 51.3 | 85.4 | 142 |
| 500 | 2.8 | 11.6 | 15.4 | 23.2 | 34.7 | 57.9 | 96.5 |
| 538 | 1.4 | 5.9 | 7.9 | 11.8 | 17.7 | 29.5 | 49.2 |
Yes, we offer custom sizes for High Hub Blind Flanges to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
