Hudson Flanges is a reliable producer of quality flanges in Midland, UK. We specialize in PN6-PN40 DIN flanges and fulfill a range of industrial requirements with precision engineering solutions. Our flanges are made to exacting standards of quality to ensure durability, reliability and high performance under changing pressure conditions. Whether for pipes, appliances, or special systems, Hudson Flanges supply the product you require. We are dedicated to delivering superior products and timely delivery so we are your partner of choice for the best flange solutions.

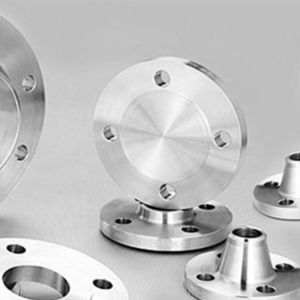

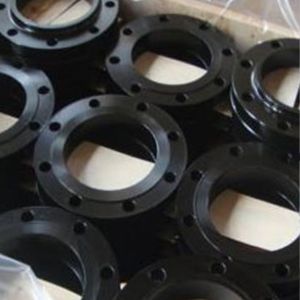

PN6-PN40 DIN flanges are manufactured from materials like carbon steel, stainless steel, or steel alloys, which ensure durability and corrosion resistance Their mechanical properties are high tensile strength, stiffness, and can resist pressures from 6 to 40 bar (PN6- ). PN40 is available). These flanges have perfect seals, mechanical stability with dependability, and simple installation and precision in piping systems. These systems find broad application in the oil, gas, water supply, chemical industry and other processes, enhancing safety and efficiency, and performing varied pressure and temperature conditions effectively with portability are dependent on it for years.
| Specifications | PN6-PN40 DIN Flanges |
|---|---|
| PN6-PN40 DIN Flange size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Production technique | Forged, Heat treated and machined |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations JIS Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |

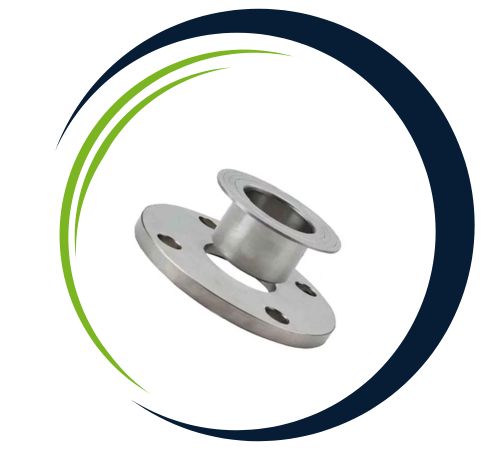

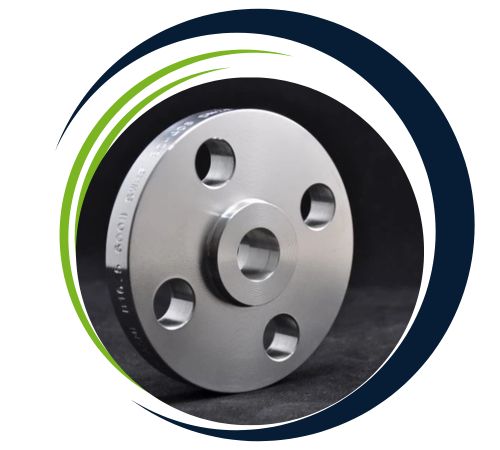

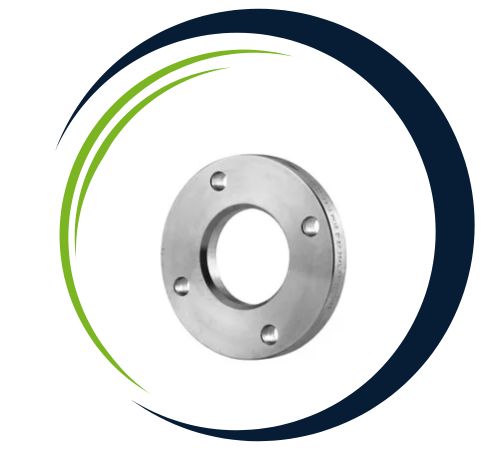

| Specialized manufacturer of | DIN 2566 en 1092 1 Pn16 Flange DIN 2566 pn16 Rtj Flange PN6-PN40 DIN Sorf Flange PN6-PN40 DIN Table Flanges DIN 2566 pn10 PN6-PN40 DIN Large Diameter Flange PN6-PN40 DIN Threaded Flanges PN6-PN40 DIN Blind Flanges PN6-PN40 DIN Plate Flanges PN6-PN40 DIN Weld Neck Flanges PN6-PN40 DIN Loose Flanges PN6-PN40 DIN Orifice Flanges PN6-PN40 DIN Slip-On Flanges PN6-PN40 DIN Lap Joint Flanges PN6-PN40 DIN Socketweld Flanges PN6-PN40 DIN AS 4087 Water Flanges |
| Test | Hydrostatic testing machine, Direct-reading Spectrograph,UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | West Europe /Indian / USA / Japan / Korean |
| Key markets and industries for PN6-PN40 DIN Flange | Nuclear power (mostly seamless). Heavy oil refineries. Bitumen upgraders. Petrochemicals and acids. |
| Export to | Indonesia, Ireland, Ukraine, Singapore,Saudi Arabia,Canada, Peru, Dubai, Brazil, Iran, Korea, USA, India, Egypt, Thailand, Spain, Oman etc |
| PN6-PN40 DIN Flanges Application | To Connect Pipe & Tubes in Power, Petroleum,Construction, Chemical, Gas, Shipbuilding,Metallurgy, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Hudson Flanges, a premier supplier in Midland, UK, specializes in high-quality PN6-PN40 DIN Flange, valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
PN6-PN40 DIN flanges are employed across numerous industries to join pipes, valves, pumps, and other equipment in a leakproof and safe manner Important across industries like oil and gas, chemical processing, water a in supply, wastewater treatment, and generation of electricity. The pressures between 6 and 40 can be handled by these flanges, making them fit for up to at least high-pressure systems. Their strong structure ensures strength and stability in the transport of water, air or hot water and simple assembly, dismantling and fixing of the pipes.
Flange Nominal Diameter | Pressure Rating (PN) | |||||
|---|---|---|---|---|---|---|
**Nominal BSP Pipe Size | PN6 | PN10 | PN16 | PN25 | PN40 | |
| DN 10 | 75 | 90 | 90 | 90 | 90 | O.D. |
| 3/8″ | 50 | 60 | 60 | 60 | 60 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes |
| DN 15 | 80 | 95 | 95 | 95 | 95 | O.D. |
| 1/2″ | 55 | 65 | 65 | 65 | 65 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 20 | 90 | 105 | 105 | 105 | 105 | O.D. |
| 3/4 | 65 | 75 | 75 | 75 | 75 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 25 | 100 | 115 | 115 | 115 | 115 | O.D. |
| 1 | 75 | 85 | 85 | 85 | 85 | PCD (bolt circle) |
| 4 x 11 | 4 x 14 | 4 x 14 | 4 x 14 | 4 x 14 | # of holes x diam. of holes | |
| DN 32 | 120 | 140 | 140 | 140 | 140 | O.D. |
| 1 1/4″ | 90 | 100 | 100 | 100 | 100 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 40 | 130 | 150 | 150 | 150 | 150 | O.D. |
| 1 1/2″ | 100 | 110 | 110 | 110 | 110 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 50 | 140 | 165 | 165 | 165 | 165 | O.D. |
| 2″ | 110 | 125 | 125 | 125 | 125 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 4 x 18 | 4 x 18 | # of holes x diam. of holes | |
| DN 65 | 160 | 185 | 185 | 185 | 185 | O.D. |
| 2 1/2″ | 130 | 145 | 145 | 145 | 145 | PCD (bolt circle) |
| 4 x 14 | 4 x 18 | 4 x 18 | 8 x 18 | 8 x 18 | # of holes x diam. of holes | |
| DN 80 | 190 | 200 | 200 | 200 | 200 | O.D. |
| 3″ | 150 | 160 | 160 | 160 | 160 | PCD (bolt circle) |
| 4 x 18 | 8 x 18 | 8 x 18 | 8 x 18 | 8 x 18 | # of holes x diam. of holes | |
| DN 100 | 210 | 220 | 220 | 235 | 235 | O.D. |
| 4″ | 170 | 180 | 180 | 190 | 190 | PCD (bolt circle) |
| “ | 4 x 18 | 8 x 18 | 8 x 18 | 8 x 22 | 8 x 22 | # of holes x diam. of holes |
DN 125 | ||||||
Yes, we offer custom sizes for PN6-PN40 DIN Flange to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
