Hudson Flanges is a UK-based manufacturer and supplier of high quality reducing flanges as well as other industrial applications from Midland. Hudson Flanges is well-known for precision engineering and bespoke products. For piping systems Provides consistent solutions, involving smooth transitions from one pipe size to another With a focus on customer satisfaction, custom flanges with stringent industry standards meets for, guarantees durability and performance in harsh environments Their experience in all forms of flanges Makes it a trusted partner.
Reducing flanges are typically constructed from carbon steel, stainless steel, or steel alloys to guarantee durability and resistance to corrosion. These flanges are manufactured to join pipes of varying diameters, which facilitates a transition from one size to another with ease. Their technical properties comprise high tensile strength, high fatigue resistance and high impact resistance. Advantages of minimizing flanges also include saving costs, as they minimize the requirement for multiple fittings, are simpler to install, and maximize flow The weight of the piping system is minimized while maintaining system integrity and leak-induced functionality.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

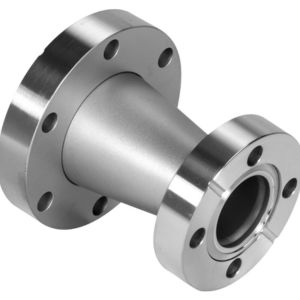

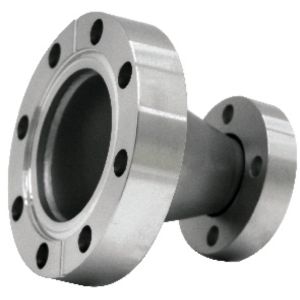

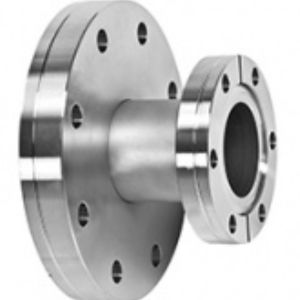

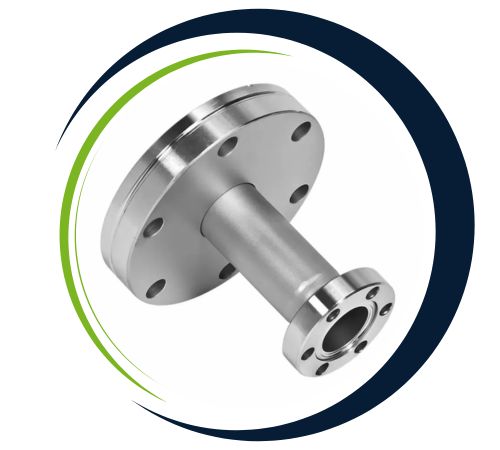

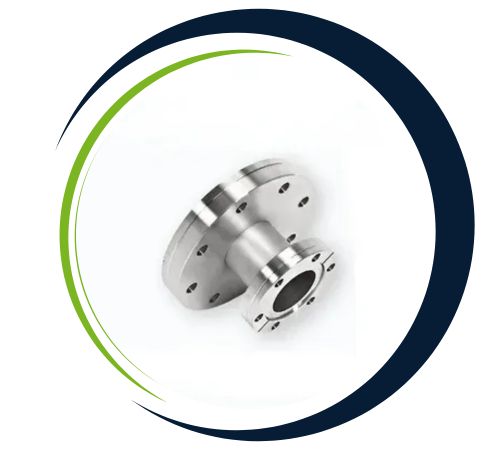

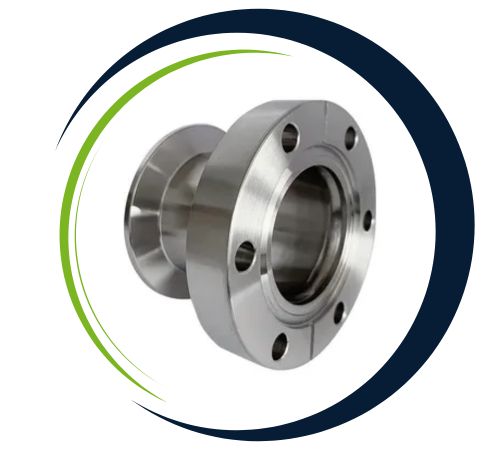

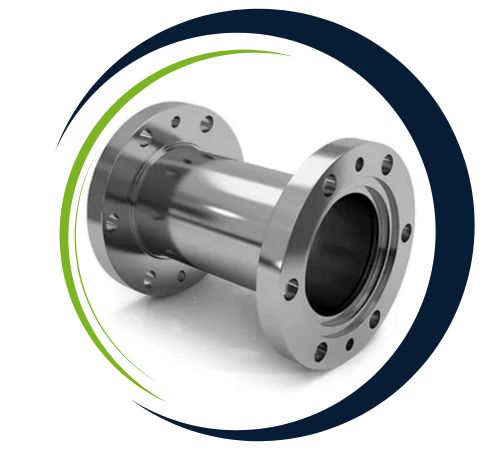

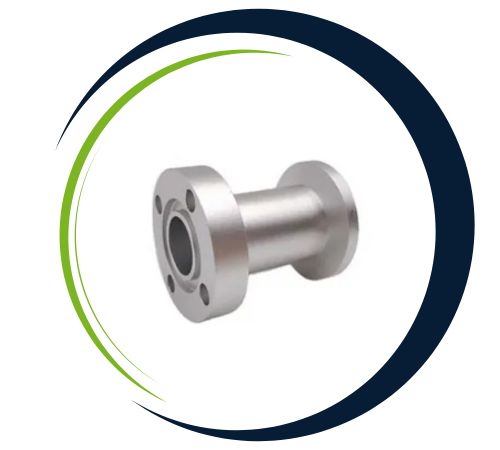

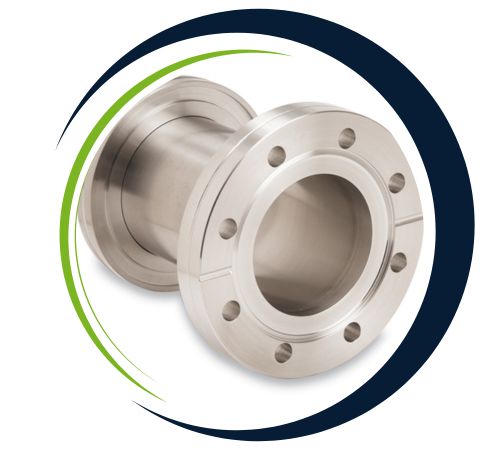

| Material | Nickel Alloy Reducing Flange, Incoloy Reducing Flange, Alloy 20 Reducing Flange, AISI 4130 Reducing Flange, SMO 254 Reducing Flange, Stainless Steel Reducing Flange, Inconel Reducing Flange, Titanium Reducing Flange, Brass Reducing Flange, Super Duplex Reducing Flange, Copper Nickel Reducing Flange, Hastelloy Reducing Flange, Monel Reducing Flange, Duplex Steel Reducing Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Flanges pressure rating in psig for Reducing Flange ASME | |||||||
| Temperature (F°) | 150# | 300# | 400# | 600# | 900# | 1500# | 2500# |
| -20 to 100 | 285 | 740 | 985 | 1480 | 2220 | 3705 | 6170 |
| 200 | 260 | 680 | 905 | 1360 | 2035 | 3395 | 5655 |
| 300 | 230 | 655 | 870 | 1310 | 1965 | 3270 | 5450 |
| 400 | 200 | 635 | 845 | 1265 | 1900 | 3170 | 5280 |
| 500 | 170 | 605 | 805 | 1205 | 1810 | 3015 | 5025 |
| 600 | 140 | 570 | 755 | 1135 | 1705 | 2840 | 4730 |
| 650 | 125 | 550 | 730 | 1100 | 1650 | 2745 | 4575 |
| 700 | 110 | 530 | 710 | 1060 | 1590 | 2655 | 4425 |
| 750 | 95 | 505 | 675 | 1015 | 1520 | 2535 | 4230 |
| 800 | 80 | 410 | 550 | 825 | 1235 | 2055 | 3430 |
| 850 | 65 | 320 | 425 | 640 | 955 | 1595 | 2655 |
| 900 | 50 | 230 | 305 | 460 | 690 | 1150 | 1915 |
| 950 | 35 | 135 | 185 | 275 | 410 | 685 | 1145 |
| 1000 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
Hudson Flanges, a leading supplier in Midland, UK, offers an extensive selection of Reducing Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Reducing Flanges are applied extensively in the oil, gas, petrochemical, power generation, and water treatment industries, where pipes of various sizes need to be connected Allows convenient conversion from one pipe size to another between, and keeps flow constant. Some common uses are joining piping in intricate systems, minimizing pressure loss, and maximizing space in restricted spaces. Flanges are also utilized in systems for handling high pressure in order to create a safe and smooth connection when transfer of fluid or air is closely regulated.
| Nominal Pipe Size | Thickness | MIN. | Diameter | MIN. | Diameter | MIN. | WELDING | NECK | JOINT |
| 32 | 38.5 | 44.5 | 63.5 | 43.7 | 184 | 43.3 | 52 | 95.2 | 52 |
| 25 | 35.0 | 36.0 | 50.8 | 34.9 | 159 | 34.5 | 48 | 88.9 | 48 |
| 15 | 30.5 | 23.5 | 34.9 | 22.9 | 133 | 22.2 | 40 | 73.0 | 40 |
| 3/4 | 1.25 | 1.14 | 1.69 | 1.11 | 5.50 | 1.09 | 1.69 | 3.12 | 1.69 |
| 1/2 | 1.19 | 0.93 | 1.38 | .90 | 5.25 | 0.88 | 1.56 | 2.88 | 1.56 |
| 25 | 35.0 | 36.0 | 50.8 | 34.9 | 159 | 34.5 | 48 | 88.9 | 48 |
| 20 | 32.0 | 29.0 | 42.9 | 28.2 | 140 | 27.8 | 43 | 79.4 | 43 |
| 1 | 1.38 | 1.41 | 2.00 | 1.38 | 6.25 | 1.36 | 1.88 | 3.50 | 1.88 |
| 1 1/4 | 1.50 | 1.75 | 2.50 | 1.72 | 7.25 | 1.70 | 2.06 | 3.75 | 2.06 |
| 1 1/2 | 1.75 | 1.99 | 2.88 | 1.97 | 8.00 | 1.95 | 2.38 | 4.38 | 2.38 |
| 40 | 44.5 | 50.5 | 73.0 | 50.0 | 203 | 49.6 | 60 | 111.4 | 60 |
| 2 | 2.00 | 2.50 | 3.62 | 2.46 | 9.25 | 2.44 | 2.75 | 5.00 | 2.75 |
| 100 | 76.5 | 118 | 157.2 | 116.8 | 356 | 116.1 | 108 | 190.5 | 108 |
| 2 1/2 | 2.25 | 3.00 | 4.12 | 2.97 | 10.50 | 2.94 | 3.12 | 5.62 | 3.12 |
| 65 | 57.5 | 76 | 104.8 | 75.4 | 267 | 74.6 | 79 | 142.9 | 79 |
| 3 | 2.62 | 3.63 | 5.00 | 3.60 | 12.00 | 3.57 | 3.62 | 6.62 | 3.62 |
| 50 | 51.0 | 63.5 | 92.1 | 62.5 | 235 | 61.9 | 70 | 127.0 | 70 |
| 80 | 67.0 | 92 | 127.0 | 91.4 | 305 | 90.7 | 92 | 168.2 | 92 |
| 4 | 3.00 | 4.63 | 6.19 | 4.60 | 14.00 | 4.57 | 4.25 | 7.50 | 4.25 |
| 5 | 3.62 | 5.69 | 7.31 | 5.69 | 16.50 | 5.66 | 5.12 | 9.00 | 5.12 |
| 125 | 92.5 | 145 | 185.7 | 144.5 | 419 | 143.7 | 130 | 228.6 | 130 |
| 6 | 4.25 | 6.75 | 8.50 | 6.75 | 19.00 | 6.72 | 6.0 | 10.75 | 6.0 |
| 150 | 108.0 | 171 | 215.9 | 171.4 | 483 | 170.7 | 152 | 273.0 | 152 |
| 8 | 5.00 | 8.75 | 10.62 | 8.75 | 21.75 | 8.72 | 7.0 | 12.50 | 7.0 |
| 200 | 127.0 | 222 | 269.9 | 222.2 | 552 | 221.5 | 178 | 317.5 | 178 |
| 10 | 6.50 | 10.88 | 12.75 | 10.92 | 26.50 | 10.88 | 9.0 | 16.50 | 9.0 |
| 250 | 165.5 | 276 | 323.8 | 277.4 | 675 | 276.2 | 229 | 419.4 | 229 |
| 12 | 7.25 | 12.94 | 15.00 | 12.92 | 30.00 | 12.88 | 10.0 | 18.25 | 10.0 |
| 300 | 184.5 | 329 | 381.0 | 328.2 | 760 | 327.0 | 254 | 463.6 | 254 |
| Nominal Size | Type | Ø A | D | Liner Thickness | |
| DN1 | DN2 | ||||
| In. | In. | mm | mm | mm | |
| 3/4″ | 1/2″ | 1 | 98.5 | 30 | 5.0 |
| 1″ | 1/2″ | 1 | 108 | 30 | 5.0 |
| 1″ | 3/4″ | 1 | 108 | 30 | 5.0 |
| 1.1/2″ | 1/2″ | 1 | 127 | 30 | 5.0 |
| 1.1/2″ | 3/4″ | 1 | 127 | 30 | 5.0 |
| 1.1/2″ | 1″ | 1 | 127 | 30 | 5.0 |
| 2″ | 1/2″ | 3 | 152 | 30 | 5.0 |
| 2″ | 3/4″ | 2 | 152 | 30 | 5.0 |
| 2″ | 1″ | 2 | 152 | 30 | 5.0 |
| 2″ | 1.1/2″ | 1 | 152 | 30 | 5.0 |
| 3″ | 3/4″ | 3 | 190.5 | 35 | 5.0 |
| 3″ | 1″ | 3 | 190.5 | 35 | 5.0 |
| 3″ | 1.1/2″ | 2 | 190.5 | 35 | 5.0 |
| 3″ | 2″ | 1 | 190.5 | 35 | 5.0 |
| 4″ | 3/4″ | 3 | 228.6 | 35 | 5.0 |
| 4″ | 1″ | 3 | 228.6 | 35 | 5.0 |
| 4″ | 1.1/2″ | 3 | 228.6 | 35 | 5.0 |
| 4″ | 2″ | 3 | 228.6 | 35 | 5.0 |
| 4″ | 3″ | 2 | 228.6 | 35 | 5.0 |
| 6″ | 3/4″ | 3 | 280 | 40 | 5.0 |
| 6″ | 1″ | 3 | 280 | 40 | 5.0 |
| 6″ | 1.1/2″ | 3 | 280 | 40 | 5.0 |
| 6″ | 2″ | 3 | 280 | 40 | 5.0 |
| 6″ | 3″ | 3 | 280 | 40 | 5.0 |
| 6″ | 4″ | 2 | 280 | 40 | 5.0 |
| 8″ | 1″ | 3 | 343 | 35 | 5.0 |
| 8″ | 1.1/2″ | 3 | 343 | 35 | 5.0 |
| 8″ | 2″ | 3 | 343 | 40 | 5.0 |
| 8″ | 3″ | 3 | 343 | 40 | 5.0 |
| 8″ | 4″ | 3 | 343 | 40 | 5.0 |
| 8″ | 6″ | 2 | 343 | 40 | 5.0 |
| 10″ | 1″ | 3 | 406 | 35 | 2.5 |
| 10″ | 1.1/2″ | 3 | 406 | 35 | 2.5 |
| 10″ | 2″ | 3 | 406 | 35 | 2.5 |
| 10″ | 3″ | 3 | 406 | 35 | 2.5 |
| 10″ | 4″ | 3 | 406 | 35 | 2.5 |
| 10″ | 6″ | 3 | 406 | 35 | 2.5 |
| 10″ | 8″ | 2 | 406 | 35 | 3.5 |
| 12″ | 1″ | 3 | 483 | 35 | 3.5 |
| 12″ | 1.1/2″ | 3 | 483 | 35 | 3.5 |
| 12″ | 2″ | 3 | 483 | 35 | 3.5 |
| 12″ | 3″ | 3 | 483 | 35 | 3.5 |
| 12″ | 4″ | 3 | 483 | 35 | 3.5 |
| 12″ | 6″ | 3 | 483 | 35 | 3.5 |
| 12″ | 8″ | 3 | 483 | 35 | 3.5 |
| 12″ | 10″ | 2 | 483 | 35 | 3.5 |
| 14″ | 12″ | 1 | 533 | 40 | 3.5 |
| 16″ | 12″ | 3 | 597 | 40 | 3.5 |
| 16″ | 14″ | 2 | 597 | 35 | 3.5 |
Yes, we offer custom sizes for Reducing Flanges to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
