Hudson Flanges is a reputable quality flange producer in Midland, UK. We have extensive experience in the industry and specialize in the provision of accurately manufactured flanges, including an extensive range of Square Flanges. Our items are designed to precise standards to guarantee high levels of durability and performance for various industrial purposes. As a value supplier, we provide tailored solutions to fulfill the unique requirements of our customers, supported by consistent service and rapid delivery for companies of all sizes.
Square flanges are generally designed with high-grade materials like carbon steel, stainless steel, or steel alloys to exhibit good strength and durability Their construction provides resistance to corrosion, heat and pressure, and is best suited for intricate applications. Mechanical strength involves high tensile strength, high fatigue endurance, and excellent corrosion resistance. Rectangular flanges have easy installation, strong sealing capacity, and use across a range of industries like oil and gas, construction and manufacturing Their design is capable of establishing strong, resilient connections, and offers consistent performance in intricate pipeline systems.
| Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Square Face (FF) |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |

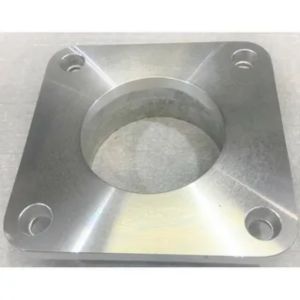

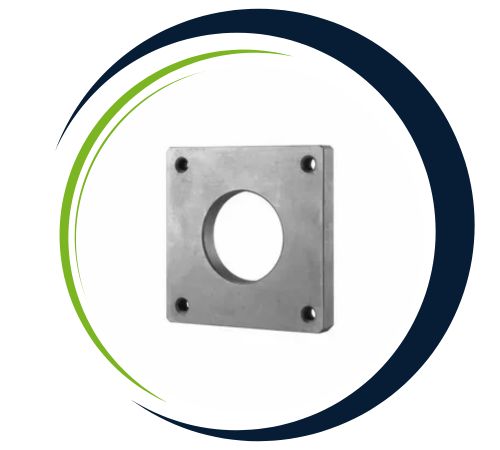

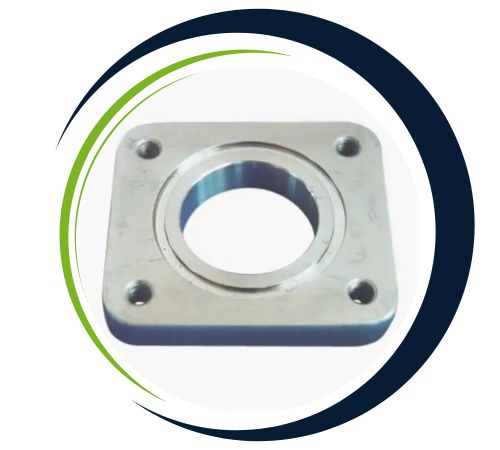

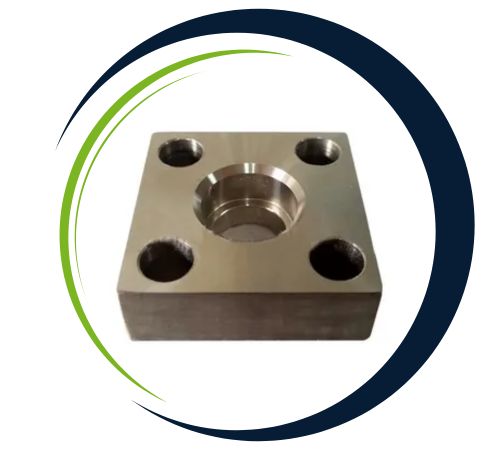

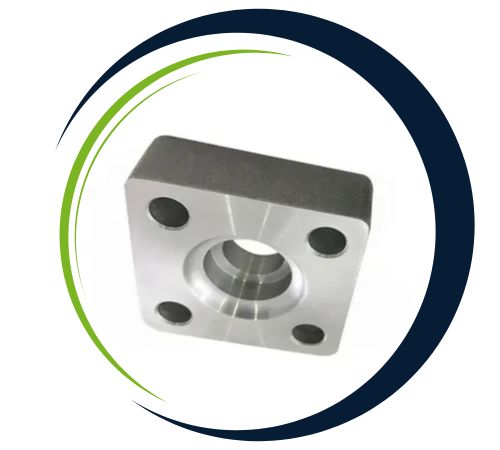

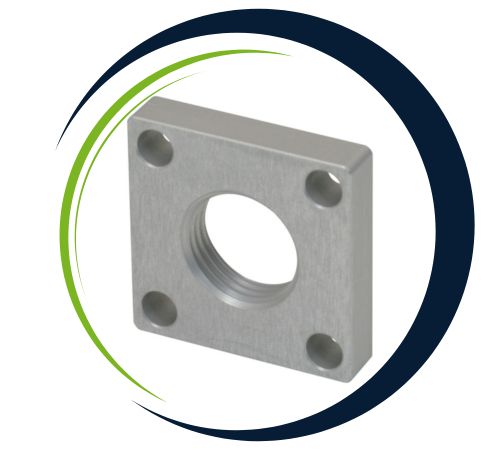

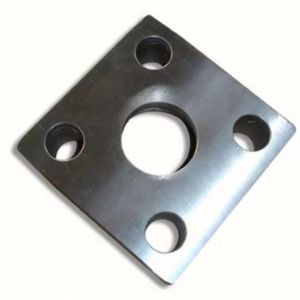

| Material | Titanium Square Flange, Incoloy Square Flange, Monel Square Flange, Nickel Alloy Square Flange, SMO 254 Square Flange, Brass Square Flange, Stainless Steel Square Flange, AISI 4130 Square Flange, Inconel Square Flange, Duplex Steel Square Flange, Hastelloy Square Flange, Alloy 20 Square Flange, Copper Nickel Square Flange, Super Duplex Square Flange. |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Hudson Flanges, a leading supplier in Midland, UK, offers an extensive selection of Square Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Square flanges are mostly utilized in high-pressure hydraulic systems to securely join pipes, valves, and pumps. Used in most industries like oil and gas, chemical processing, shipbuilding and power generation, they provide secure, leak-free connections. Due to their square shape, it is easy to align them when installing them and therefore they are well suited for compact or restricted areas. Square flanges are also applied where repeated disassembly for maintenance is needed. Constructed from robust materials, they are highly resistant to corrosion and pressure, guaranteeing long-term use in harsh environments.
| Square Flange (PN 250) | ||||||||||
| Part N° | PN bar1 | DN | O | GG | Ø J | Ø D | U | F | T | |
| BM-250-CET-3/8″ BM-250-CET-1/2″ | 250 | 10 13 | 40 45 | 24.7 29.7 | 18.5 24.3 | 25.1 31 | 14 * 15 * | 6.2 6.2 | 6.5 8.5 | |
| BM-250-SID-1/2″ | 13 | 45 | 30 | 24.3 | 31 | 15 | 6.2 | 6.5 | ||
| BM-250-CET-SID-3/4″ BM-250-CET-SID-1″ | 19 25 | 50 65 | 35.3 43.8 | 32.1 38.5 | 38.9 45.3 | 16 * 18 * | 6.2 7.6 | 8.5 11 | ||
| BM-250-CET-SID-1″1/4 | 32 | 75 | 51.6 | 43.7 | 51.6 | 22 * | 7.6 | 13 | ||
| BM-250-CET-1″1/2 BM-250-SID-1″1/2 | 38 38 | 85* 85 | 60,1 60 | 50.8 50.8 | 61.1 61.1 | 25 * 25 | 7.6 7.6 | 15 * 13 | ||
| BM-250-CET-2″ | 51 | 100 | 69.3 | 62.7 | 72.2 | 30 * | 9 | 17 | ||
| BM-250-SID-2″ BM-250-CET-2″1/2 | 51 56 | 100 120 | 68 83.4 | 62.7 76.6 | 72.2 88 | 30 35 * | 9 9 | 15 21 | ||
| BM-250-SID-2″1/2 | 56 | 120 | 85 | 76.6 | 88 | 35 | 9 | 19 | ||
| BM-250-CET-3″ BM-250-SID-3″ | 63 63 | 140 140 | 102.5 95 | 90.8 90.8 | 102.3 102.3 | 40 * 40 | 9 9 | 21 23 | ||
| BM-250-CET-3″1/2 | 70 | 140 * | 102.5 * | 102.5 | 120 | 52 * | 17.5 | 21 * | ||
| BM-250-CET-4″ BM-250-SID-4″ | 80 80 | 160 * 180 | 113.2 * 130 | 114.5 114.5 | 132 132 | 60 * 60 | 21 21 | 21 * 25 | ||
| NPS (Inches) | DN (mm) | FLANGE OD A MM | FLANGE THICKNESS D MM | SLIP ON FLANGE WEIGHT (KGS) | WELD NECK FLANGE WEIGHT (KGS) | BLIND FLANGE WEIGHT (KGS) |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for Square Flanges to meet specific project needs. Our team at Hudson Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@hudsonflanges.co.uk.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
